Visual-Aware CoT: Achieving High-Fidelity Visual Consistency
in Unified Models

Zixuan Ye¹†, Quande Liu²‡, Cong Wei², Yuanxing Zhang², Xintao Wang², Pengfei Wan², Kun Gai², Wenhan Luo¹‡

¹Hong Kong University of Science and Technology, ²Kuaishou Technology †Work done during an internship at KwaiVGI, Kuaishou Technology. ‡Corresponding Author

arXiv Code (Coming Soon)

TL;DR: a visually-aware multi-modal CoT for unified understanding and generation model toward multi-modal generation.

Motivation

CoT approaches for generation

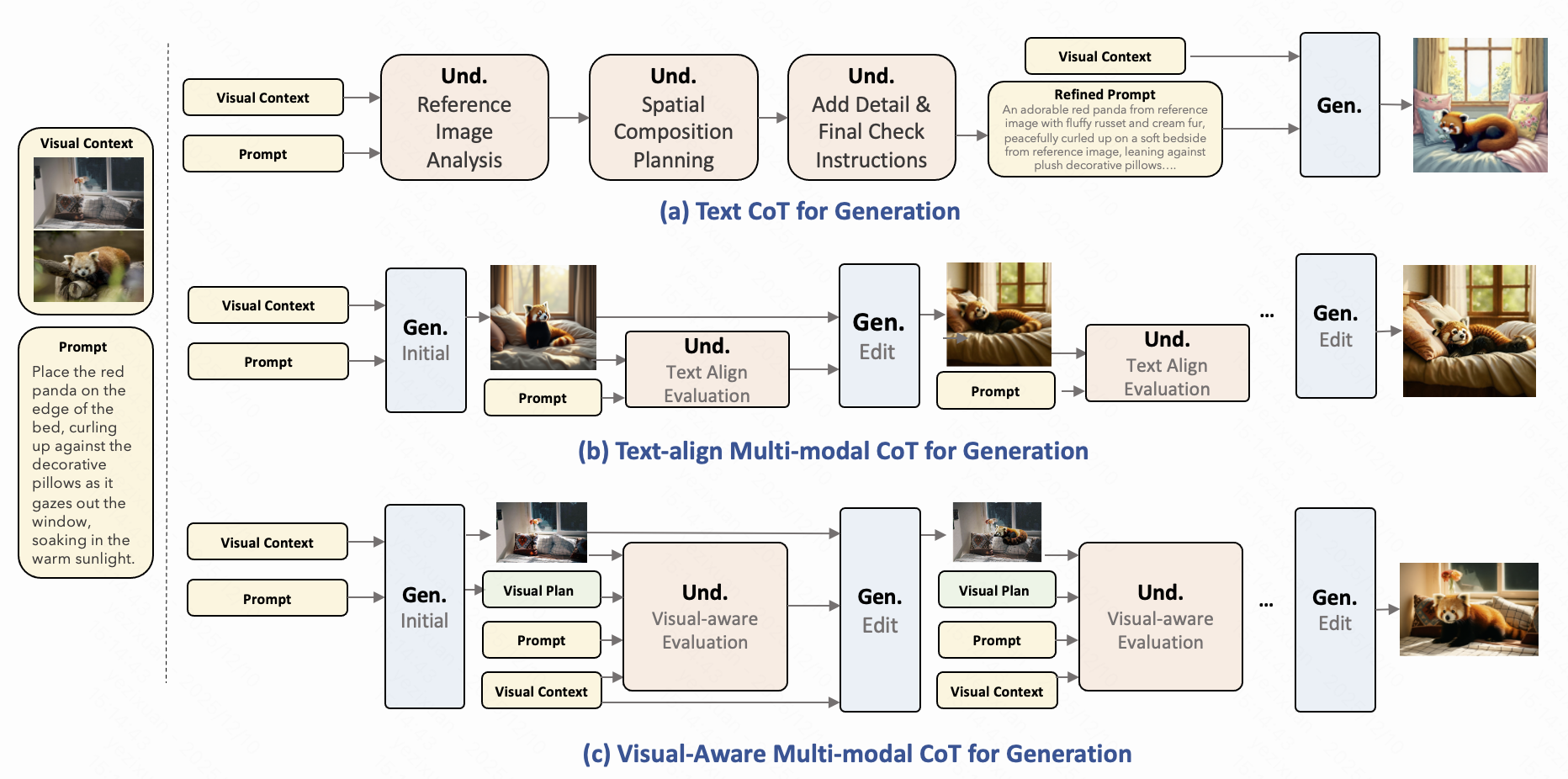

Comparison of Text CoT, Text-align Multi-modal CoT, and Visual-Aware Multi-modal CoT workflows.

Problem: Existing Chain-of-Thought (CoT) models prioritize text consistency but neglect critical visual context consistency — maintaining identity, attributes, and style from reference images during multi-modal generation.

Our Solution: Visual-Aware CoT (VACoT) integrates visual consistency directly into the reasoning process, enabling models to explicitly preserve visual elements while generating content.

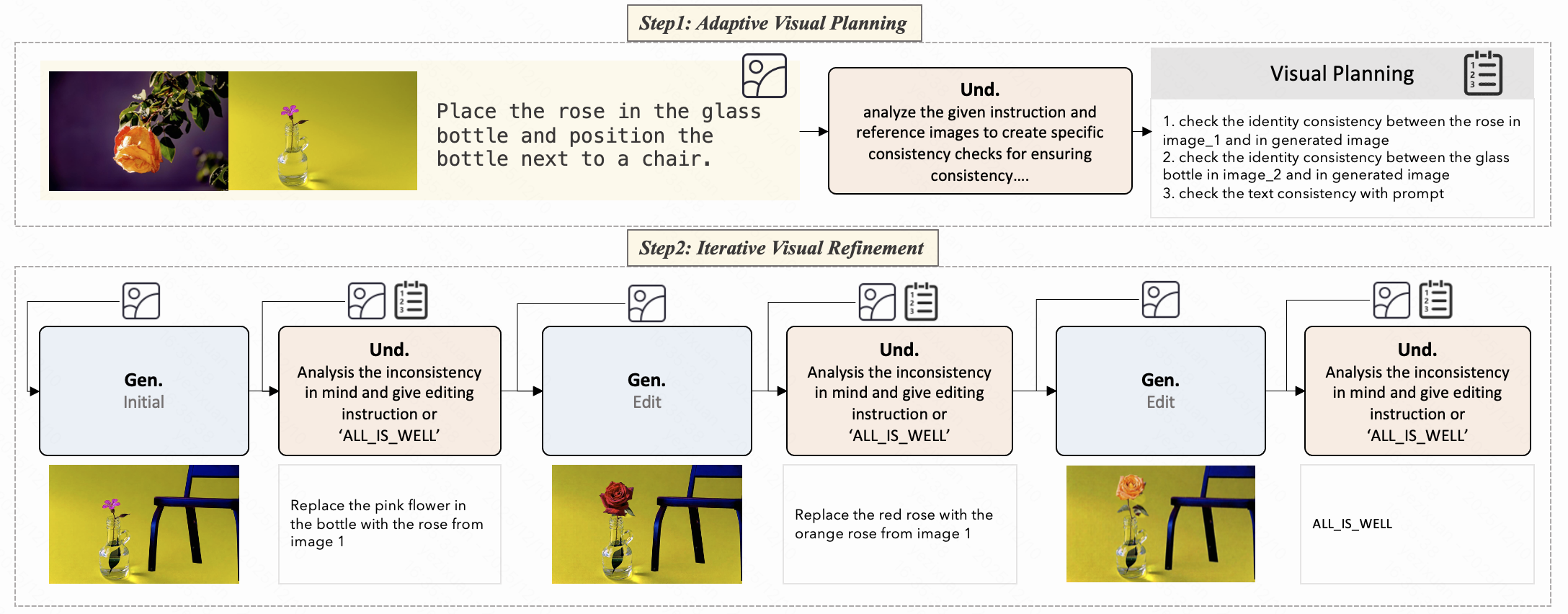

Method

We propose VACoT (Visual-Aware CoT), integrating visual context consistency into unified model reasoning through two key innovations:

🎯 Adaptive Visual Planning

Generates structured visual checklists to systematically identify visual elements requiring consistency preservation:

Identity: Human ID, facial features
Style: Aesthetic style, color palette
Attribute: Object color, shape, spatial relations

🔄 Iterative Visual Correction

Performs self-reflection and iterative refinement using visual checklists to evaluate and progressively improve generation quality.

Key Innovation: VACoT explicitly incorporates visual awareness into both planning and correction phases, ensuring high-fidelity visual consistency with reference images.

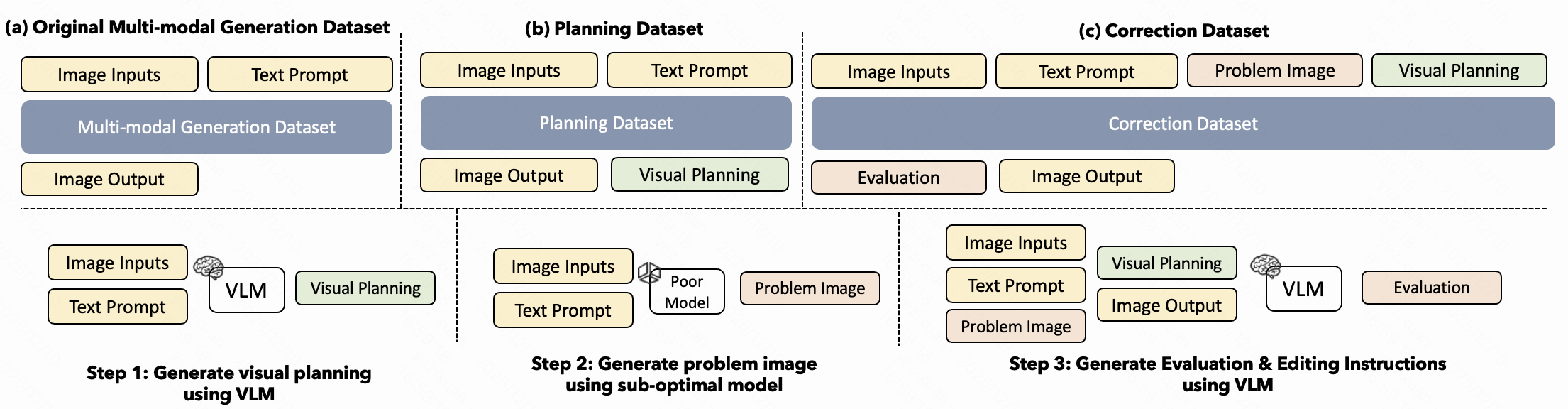

Dataset Construction

We construct specialized datasets to train visual-aware reasoning capabilities.

D_planning: Using powerful VLM to create structured visual checklists based on the text and reference inputs
D_correction: Simulating failure cases with sub-optimal models, then providing analysis based on the visual plan and editing instructions toward ground-truth using VLM

Training Strategy

A two-stage approach infuses visual awareness into the unified model.

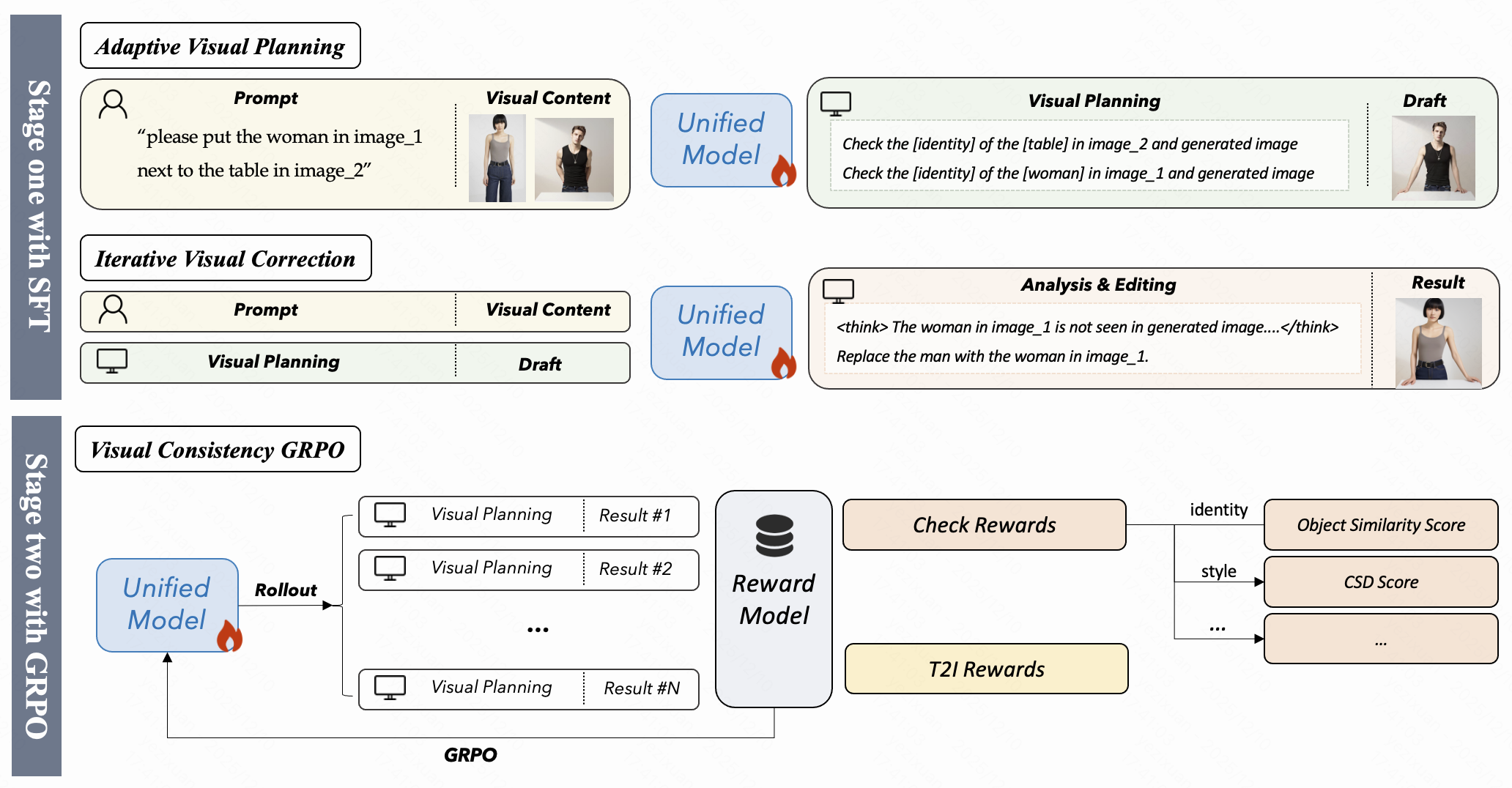

Two-stage training pipeline: SFT followed by flow-GRPO

Stage 1 (SFT): Supervised fine-tuning on D_planning and D_correction to learn visual planning and correction patterns
Stage 2 (GRPO): Reinforcement learning using Visual Consistency Reward (R_visual) incorporating DINO similarity (Identity) and CSD-Score (Style) to maximize visual alignment

Results

VACOT significantly outperforms existing CoT approaches in visual context preservation.

Qualitative Comparison

VACoT ensures stable identity preservation and visual coherence in multi-reference generation, unlike text-focused baselines.

Iterative Correction Example

Example showing initial generated image being corrected over several iterations using VACOT.

Images are typically successfully refined within 3 iterations. Iterations identify issues (e.g., missing identity, incorrect object) and guide the model to self-correct.

Style Transfer

Zero-shot capability in Style Transfer.

Citation

If you find this work useful for your research, please consider citing our paper:

@article{ye2025visual,
  title={Visual-Aware CoT: Achieving High-Fidelity Visual Consistency in Unified Models},
  author={Ye, Zixuan and Liu, Quande and Wei, Cong and Zhang, Yuanxing and Wang, Xintao and Wan, Pengfei and Gai, Kun and Luo, Wenhan},
  journal={arXiv preprint arXiv:25XX.XXXXX},
  year={2025}
}
